Box Hole Boring machine

Your Trusted Box Hole Boring machine Manufacturer in China

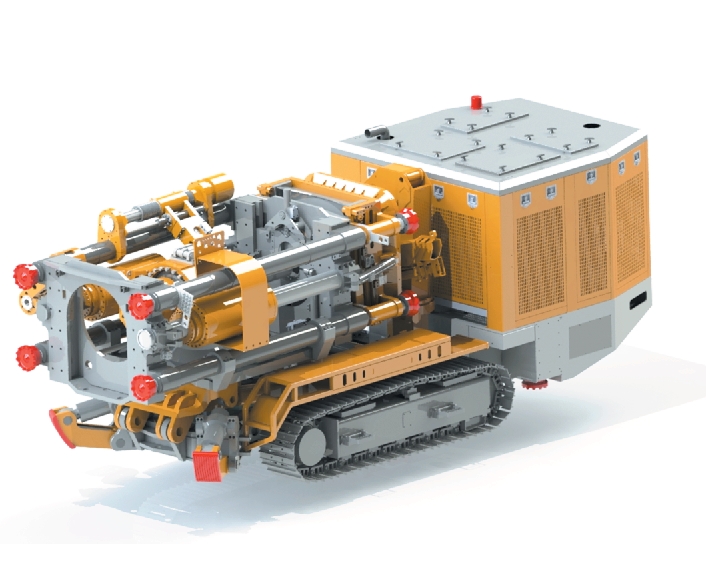

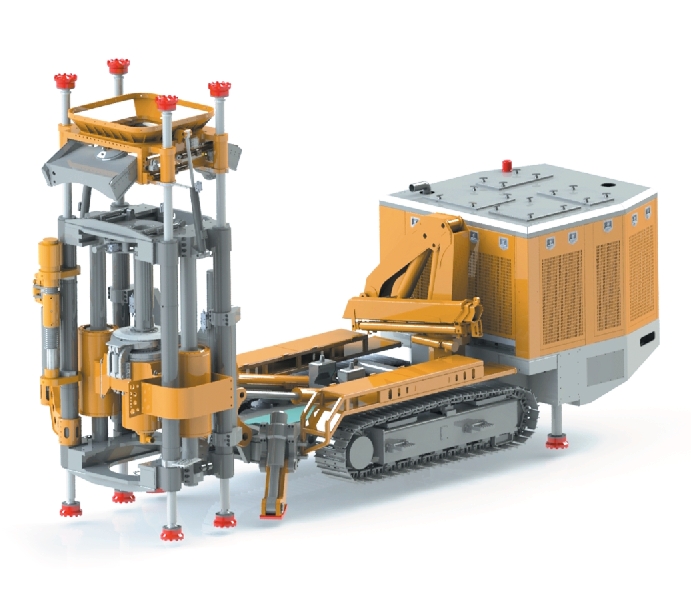

LOOKING AT-1000L Box Hole Boring machine is mainly used for cutting well construction of underground ore block recovery in your mine. It is used in mining processes such as “VCR sub-caving method” and “medium-deep hole blasting and one-time well formation”, and has the advantages of safety, high efficiency, low strength and good well formation quality.

AT-1000L Box Hole Boring machine uses a self-lubricating maintenance-free hydraulic crawler chassis. In addition to self-lubricating and maintenance-free, it also has excellent ground adhesion characteristics and hydraulic wet braking mechanism. Combined with the hydraulic control system, it can realize three-speed shifting, turning in place and other functions. The large-displacement imported closed pump drives the travel motor, which is particularly suitable for long-distance slope high-load walking in the mine, and the transfer is flexible, fast and reliable.

In addition, we also provide you with a one-stop customized solution. Whether it is color, structure or other requirements, we can customize it for you to meet your diverse needs.

Safe And Reliable Box Hole Boring Machine

All operation actions of LOOKING Box Hole Boring machine are driven by wireless remote control and handle dual mode, which can be switched freely, backed up each other and highly reliable.
In addition, our intelligent control system adopts man-machine separation remote control operation and modular integrated design, with functions such as mode setting, automatic operation, fault warning, pressure limit protection, overload protection, temperature alarm, liquid level reminder, safety protection, fault diagnosis, data storage, remote communication and data display. It can guarantee the convenience and safety of your construction to the greatest extent.

Self-lubricating maintenance-free hydraulic crawler chassis. In addition to self-lubricating and maintenance-free, it also has excellent ground adhesion characteristics and hydraulic wet brake mechanism. Combined with the hydraulic control system, it can realize three-speed shifting, turning on the spot and other functions. The large-displacement imported closed pump drives the travel motor. LOOKING Box Hole Boring machine is particularly suitable for long-distance slope high-load travel in the mine, and the transfer is flexible, fast and reliable.

LOOKING Box Hole Boring machine adopts diesel-electric combined with dual power hydraulic system. The motor drives all the construction functions, and the fuel power drives the walking function. Both the motor drive and the fuel drive adopt a closed constant power variable system, and realize PLC program control through electro-hydraulic proportional control and load sensitive feedback.
In addition, it also has the function of automatic compensation of top support pressure. The automatic compensation function of top support pressure is a strong guarantee to ensure your stable operation, which allows you to avoid pouring concrete foundation, and realize the machine can be started immediately and the machine can be quickly transferred after completion. It is convenient and fast, which greatly saves your foundation pouring and installation and disassembly time.

What are the requirements for the installation site of the Box Hole Boring Machine?

LOOKING Box Hole Boring Machine has a forward drilling (from bottom to top) hole diameter range of 250-670mm. It does not require a concrete platform, but requires that the ground where the equipment is installed is hard rock and no rock debris.

What is the functional difference between the Box Hole Boring Machine and the raise boring machine?

The Box Hole Boring Machine uses mechanical drilling to form a cutting groove, combined with blasting or mechanical excavation to complete the skylight. The raise boring machine drills a pilot hole from top to bottom and then expands the hole from bottom to top to form a well.

What are the maintenance points of the Box Hole Boring Machine?

When maintaining the Box Hole Boring Machine, special attention should be paid to regularly replacing the drill bit or tool; ensuring the accuracy of the detonation sequence and charge amount and preventing dust accumulation from affecting safe operation. For more detailed information, you can contact our customer service and we will send you specific documents.
